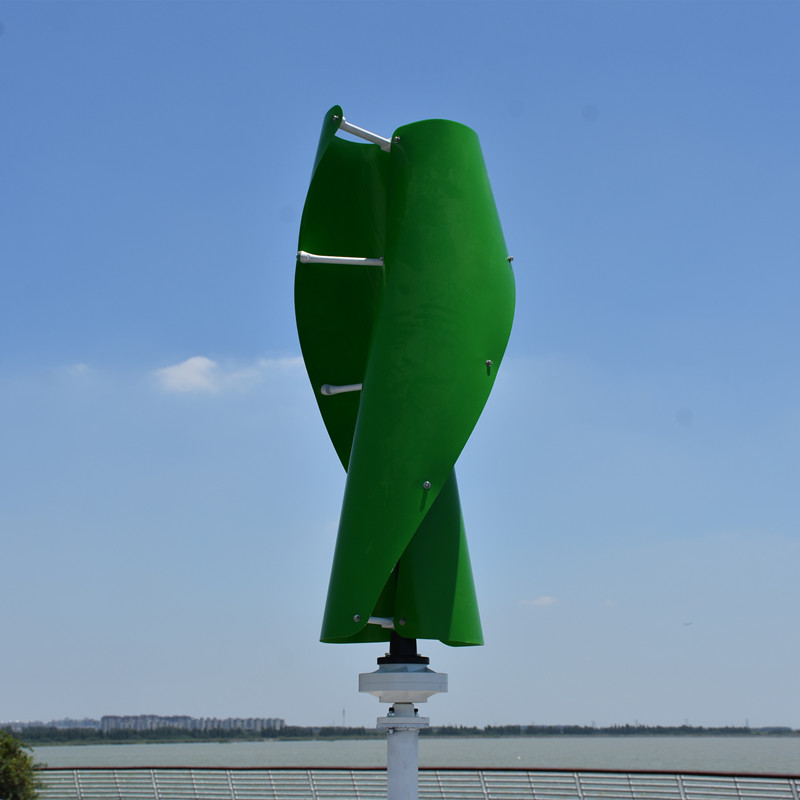

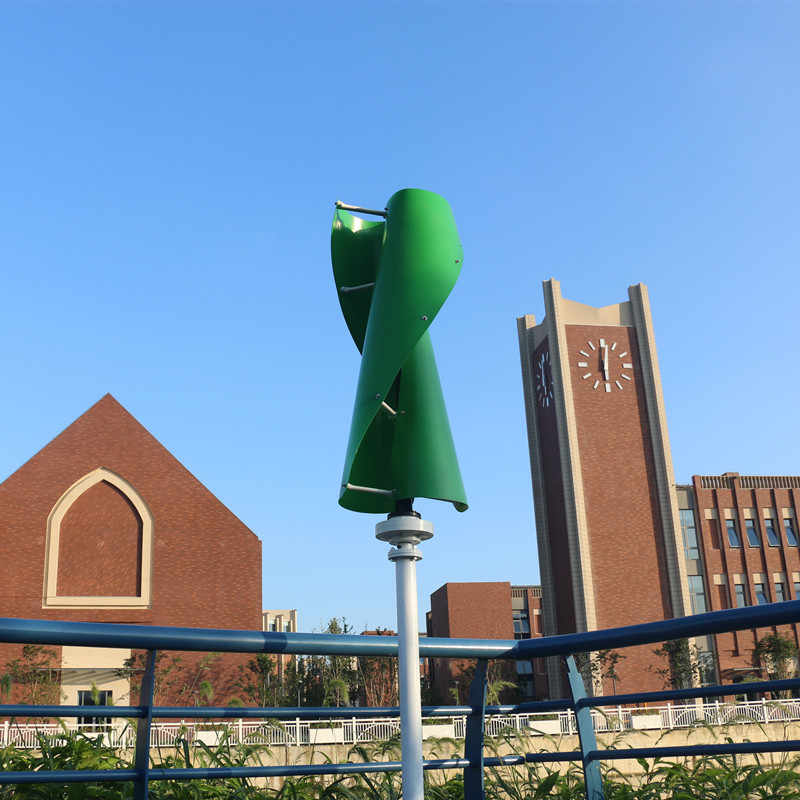

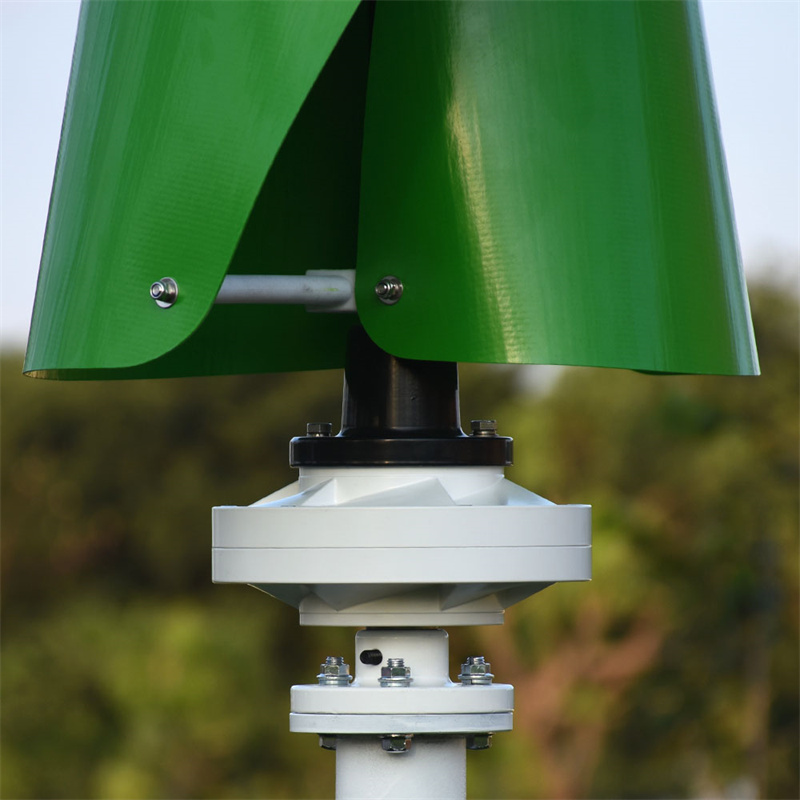

1kw 96v Vertical Wind Turbine Helix Small Wind Generator Axis Windmill

Short Description:

1, Rich colors. The blades could be white, orange, yellow, blue, green, mixed, and any other color.

2, Various voltages. 3 phase AC output, suitable for charging 12V, 24V, 48V batteries.

3, One-piece Blade design ensures higher rotational stability, low noise.

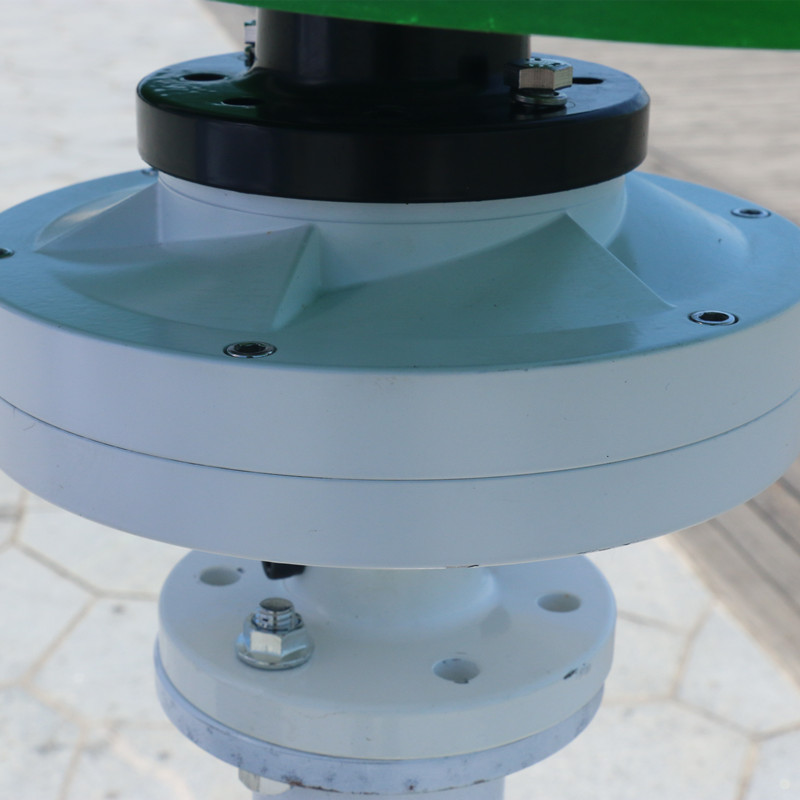

4, Coreless generator means lower start torque, lower start wind speed, longer service life.

5, RPM limit protection. The RPM is kept under 300 regardless of high wind speed which prevents –the controller from over-load.

6, Easy installation. Full set of fasteners and installation tools are attached in the package.

7, Long service life. The turbine could work 10~15 years under normal natural environments

Inquiry

Specification

item	FS-200	FS-400	FS-600	FS-1000	FS-2000
Started wind speed (m/s)	1.3 m/s	1.3 m/s	1.3 m/s	1.5m/s	1.5m/s
Cut-in wind speed (m/s)	2.5 m/s	2.5 m/s	2.5 m/s	3m/s	3m/s
Rated Wind speed (m/s)	12 m/s	11 m/s	11 m/s	11m/s	11m/s
Rated voltage(AC)	12/24V	12/24V	12/24V	24v/48v	48v/96v
Rated power(W)	200W	400W	600W	1000w	2000w
Max power(W)	230W	450W	650W	1100w	2100w
Rotor Diameter of Blades(m)	0.42	0.52	0.52	0.67m	0.8m
Product assembly weight (Kg)	<20Kg	<23Kg	<25Kg	<40Kg	<80Kg
Blades height(m)	0.9m	1.05m	1.3m	1.5m	2m
Safe wind speed (m/s)	≤40m/s
Blades quantity	2
Blade material	glass/basalt
Generator	Three phase permanent magnet suspension motor
Control System	Electromagnet
Mount Height(m)	7~12m (9m)
Generator protection grade	IP54
Work environment temperature	-25~+45ºC,
