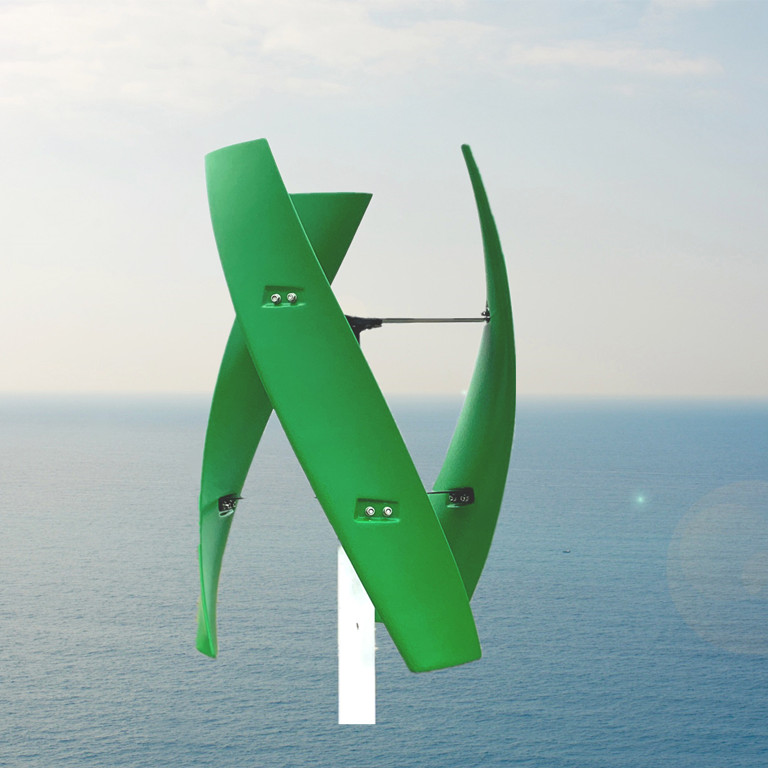

400w-800w 48v Vertical Wind Turbine Generator Free Alternative Energy

Short Description:

1, Rich colors. The blades could be white, orange, yellow, blue, green, mixed, and any other color.

2, Various voltages. 3 phase AC output, suitable for charging 12V, 24V, 48V batteries.

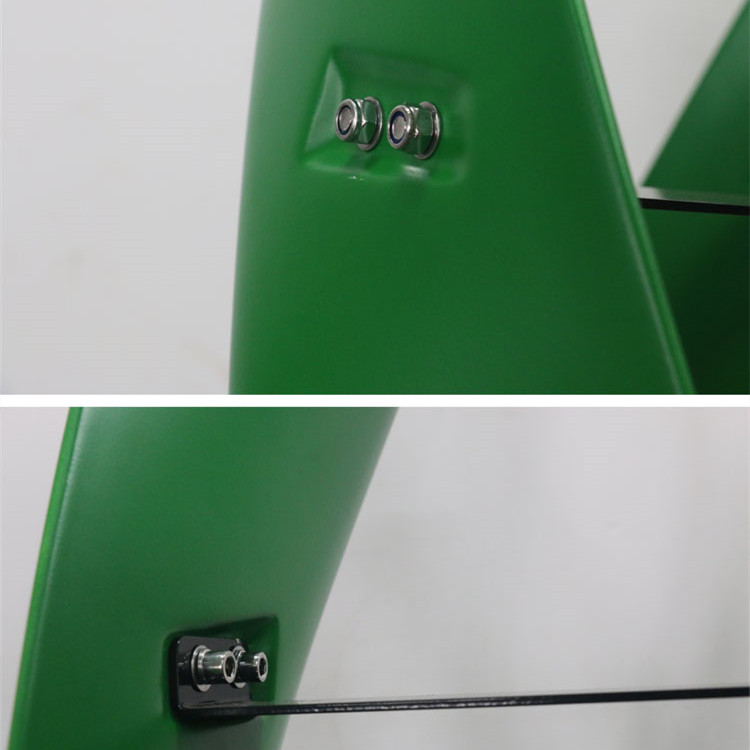

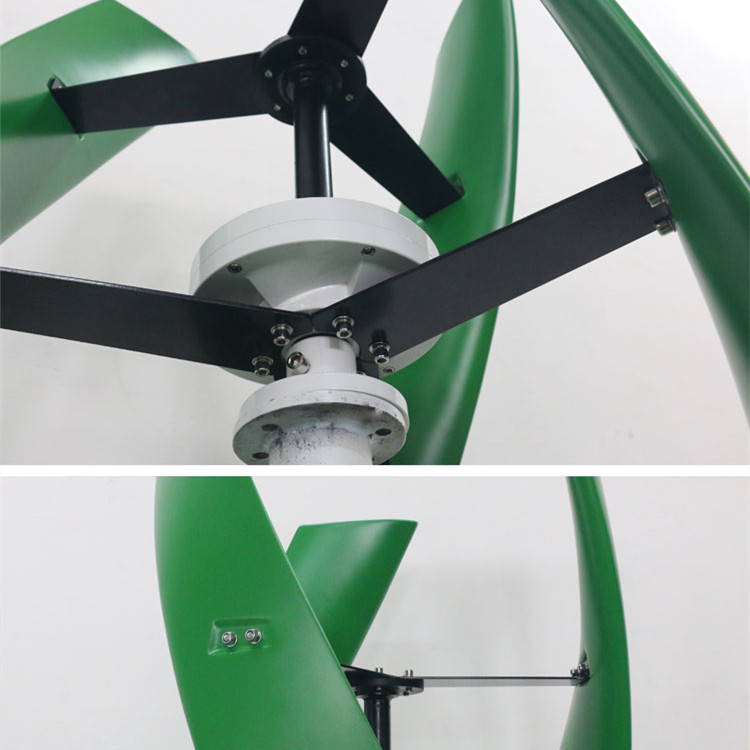

3, One-piece Blade design ensures higher rotational stability, low noise.

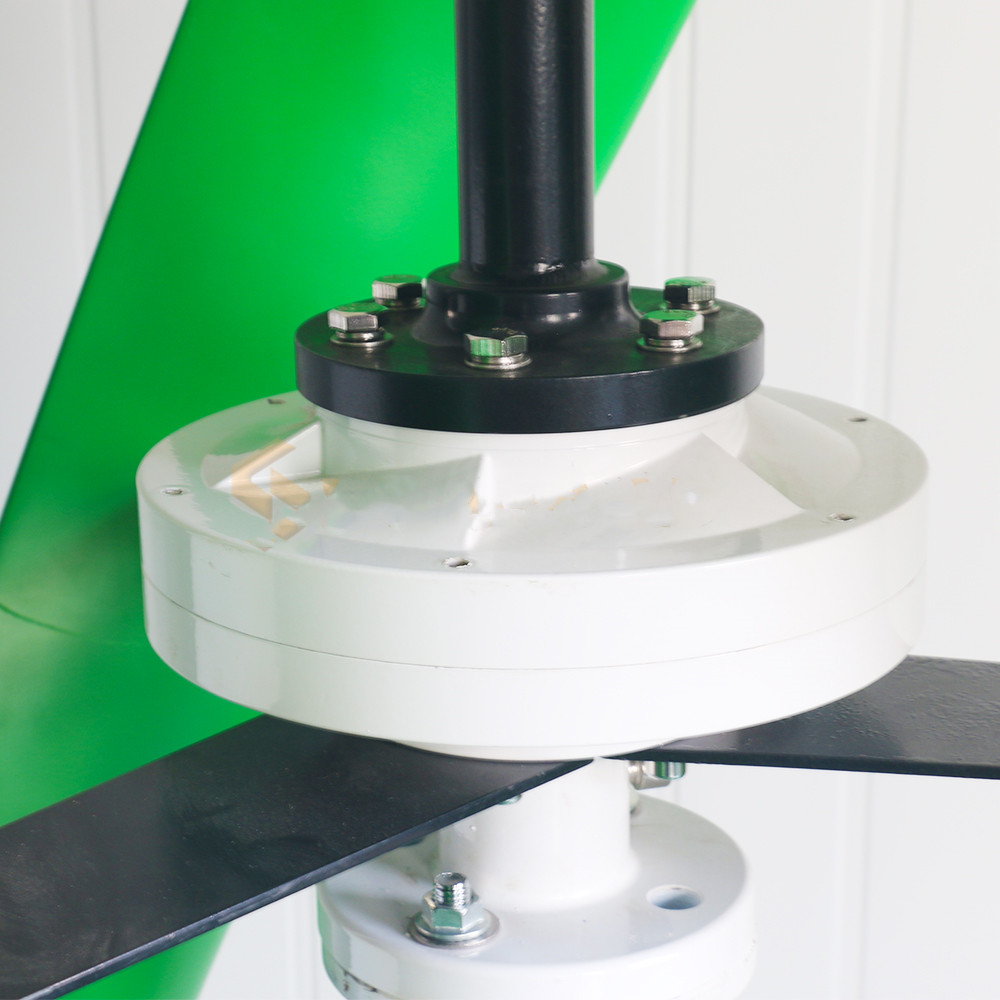

4, Coreless generator means lower start torque, lower start wind speed, longer service life.

5, RPM limit protection. The RPM is kept under 300 regardless of high wind speed which prevents –the controller from over-load.

6, Easy installation. Full set of fasteners and installation tools are attached in the package.

7, Long service life. The turbine could work 10~15 years under normal natural environments.

Inquiry

Specification

item	FX-400	FX-600	FX-800
Started wind speed (m/s)	1.3m/s	1.3m/s	1.5m/s
Cut-in wind speed (m/s)	3m/s	3m/s	3m/s
Rated Wind speed (m/s)	11m/s	11m/s	11m/s
Rated voltage(AC)	12V/24V/48v	12V/24V/48v	12V/24V/48v
Rated power(W)	400w	600w	800w
Max power(W)	410w	610w	810w
Safe wind speed (m/s)	≤40m/s
Blades quantity	3
Blade material	glass/alloy
Generator	Three phase permanent magnet suspension motor
Control System	Electromagnet
Certification	CE
Generator protection grade	IP54
Work environment temperature	-25~+45ºC,

Why Choose US

1,Competitive Price

--We are the factory/manufacturer so we can control production costs and then sell at the lowest price.

2,Controllable quality

--All products will be produced in our factory so we can show you every detail of the production and let you check the quality of the order.

3. Multiple payment methods

-- We accept online UPI and bank transfer

4,Various forms of cooperation

--We are not only offer you our products, if it is needed, we could be your partner and design product according to your requirement. Our factory is your factory!

5.perfect after-sales service

--As a manufacturer of wind turbine and generator products for over 4 years,we are very experiences to dealing all kinds of problems. So whatever happens,we will solve it at the first time.
