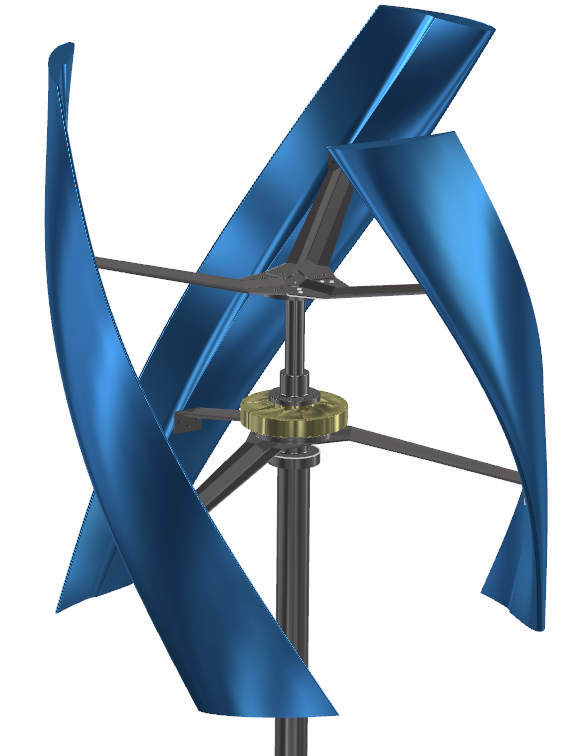

FX 1000W-3000W CORELESS MAGLEV VERTICAL WIND TURBINE

FX 1000W-3000W CORELESS MAGLEV VERTICAL WIND TURBINE Featured Image

Short Description:

1, Curved blade design, utilizes wind resource effectively and obtains a higher power generation. 2, Coreless generator, Horizontal rotation and aircraft wing design reduce the noise to an unper-ceivable level in natural environment. 3, Wind resistance. Horizontal rotation and triangular double fulcrum design make it only bear a- small wind pressure even in strong wind. 4, Rotation radius. smaller rotation radius than other types of wind turbines, space is saved while efficiency improved. 5, Effective wind speed range. special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes wind resource effectively and obtains a higher power generation.


Features

1, Curved blade design, utilizes wind resource effectively and obtains a higher power generation.
2, Coreless generator, Horizontal rotation and aircraft wing design reduce the noise to an unper-ceivable level in natural environment.
3, Wind resistance. Horizontal rotation and triangular double fulcrum design make it only bear a- small wind pressure even in strong wind.
4, Rotation radius. smaller rotation radius than other types of wind turbines, space is saved while efficiency improved.
5, Effective wind speed range. special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes wind resource effectively and obtains a higher power generation.

Specifications

itemFX-1000FX-2000FX-3000
Started wind speed (m/s)1.5m/s1.5m/s1.5m/s
Cut-in wind speed (m/s)3m/s3m/s3m/s
Rated Wind speed (m/s)11m/s11m/s11m/s
Rated voltage(AC)24V/48V48v/96V48v/96V
Rated power(W)1000w2000w3000w
Max power(W)1100w2100w3100w
Safe wind speed (m/s)≤40m/s
Blades quantity3
Blade materialglass/alloy
GeneratorThree phase permanent magnet suspension motor
Control SystemElectromagnet
CertificationCE
Generator protection gradeIP54
Work environment temperature-25~+45ºC,
