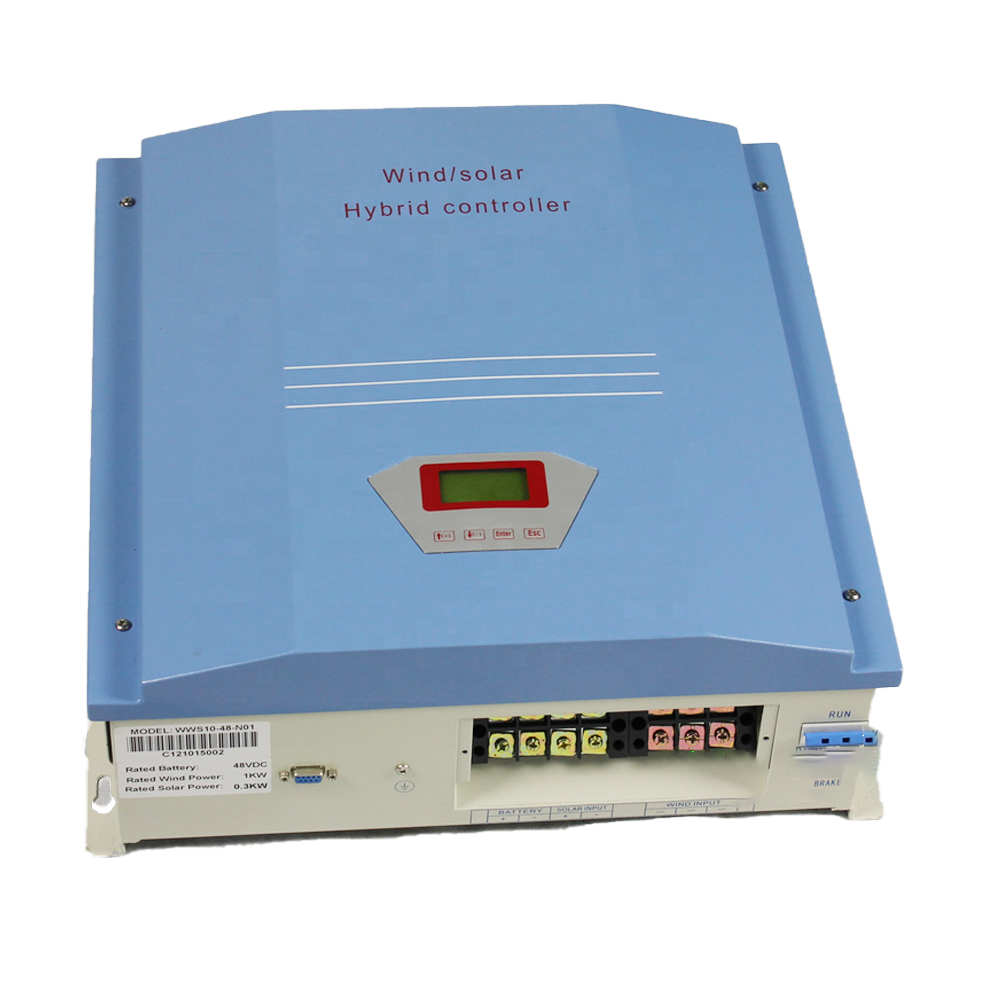

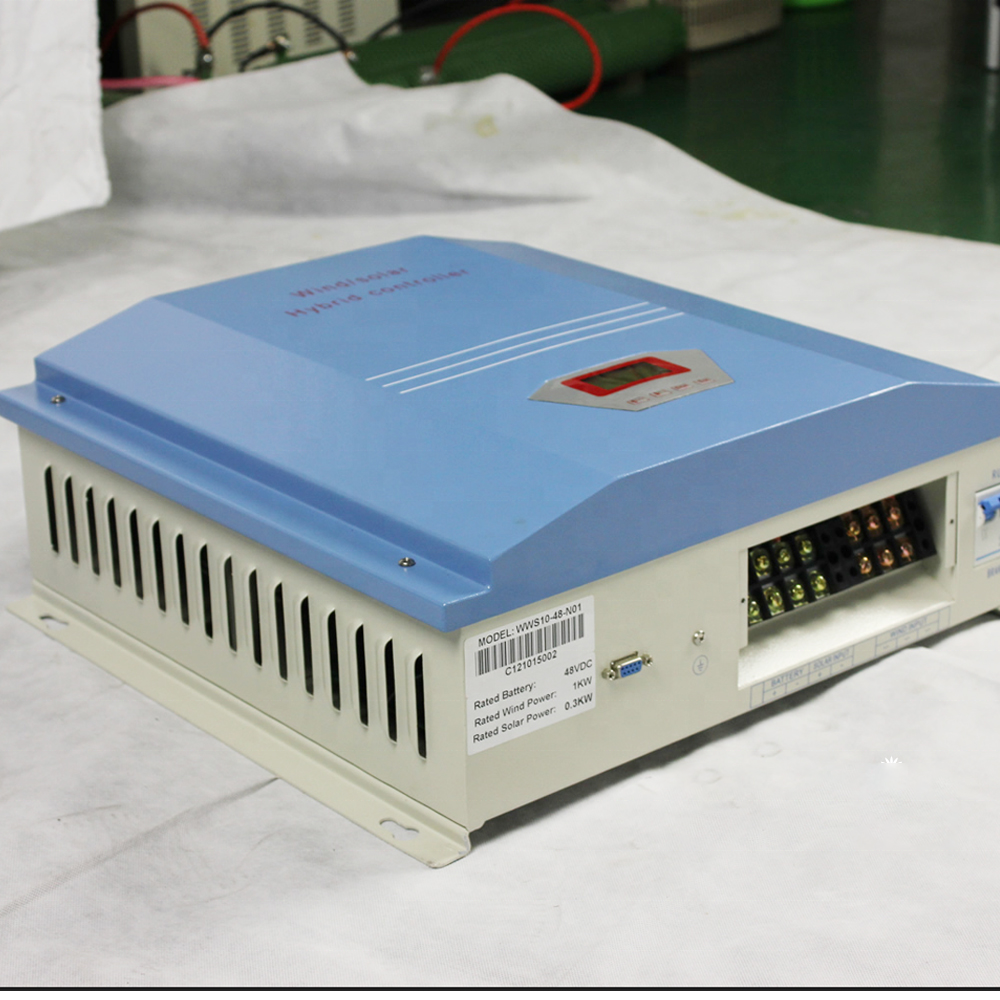

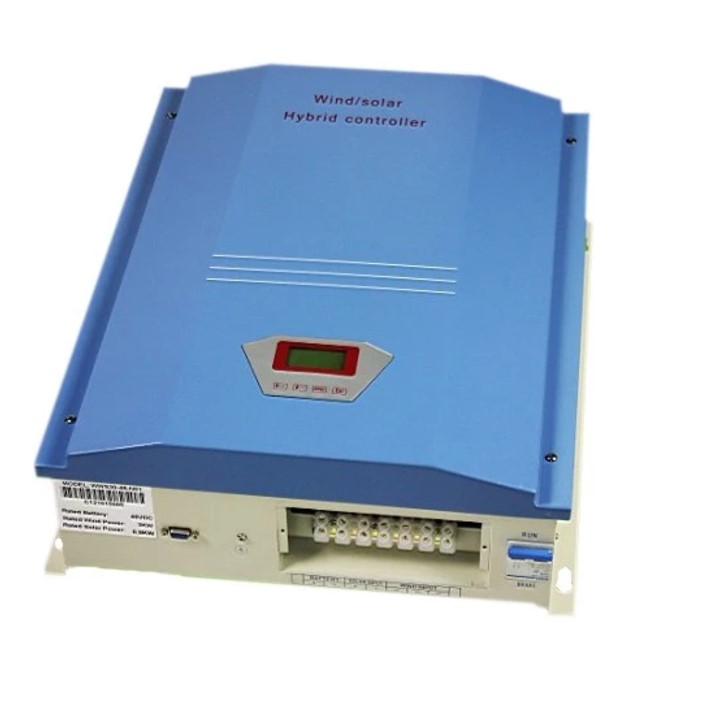

1000w 2000w 3kw 5kw 10kw 48/96/120/220v Wind Solar Hybrid Charge Controller For Off Grid System

Short Description:

1. PWM Charging Mode.

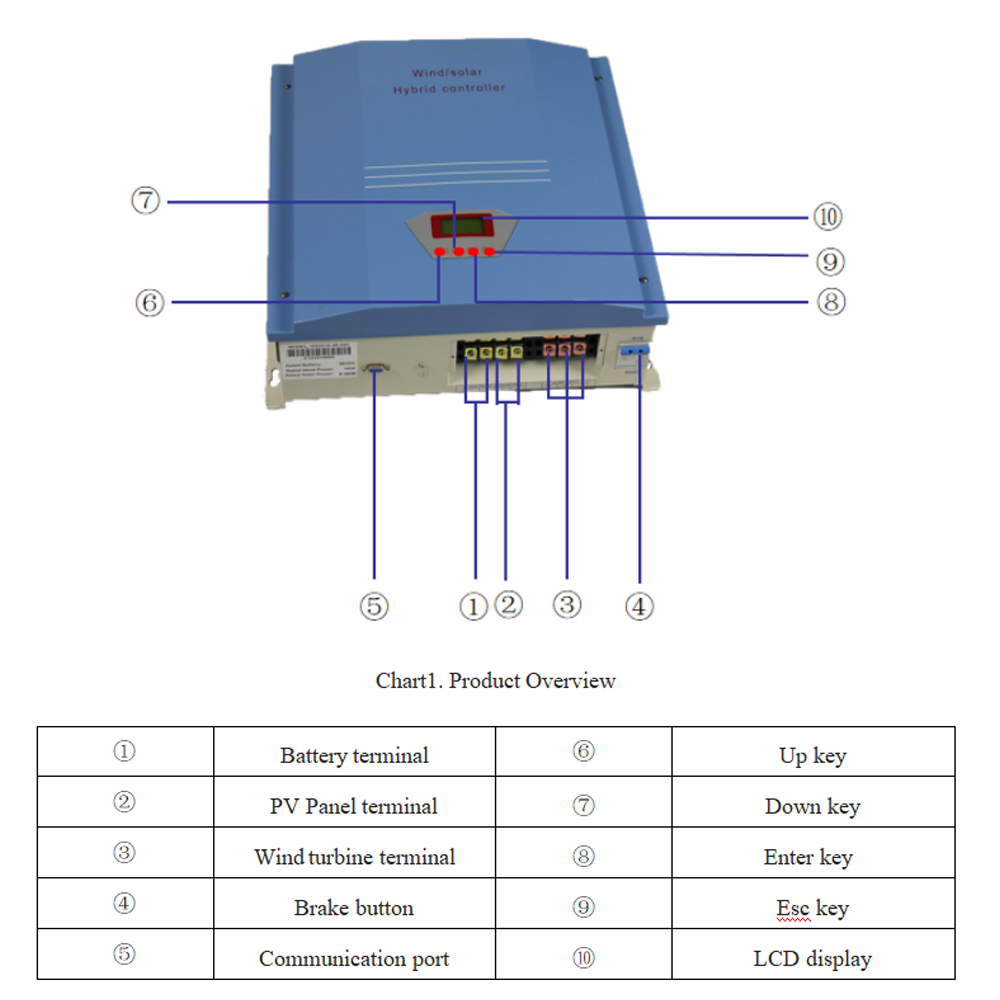

2. Friendly human-machine interface.

3. Perfect protection function.

4. Remote Communication Function.

5. The optional dry contact signal output function.

6. The optional temperature compensation function.

7. The optional off-line storage module.

8. Optional MPPT Charging Function.

9. The optional touch screen display.

Inquiry

Specification

Parameters	WWS10-48	WWS20-48	WWS30-120
Rated Battery Voltage	48V	48V	120V
Rated Wind Turbine Input Power	1kw	2kw	3kw
Maximum Wind Turbine Input Power	2kw	3kw	4.5kw
Wind turbine brake current	22A	42A	25A
Rated solar Input Power	300W	600W	800W
Charge Shutoff Voltage	58V	58V	145V
Stand by power loss	≤65mA	≤65mA	≤65mA
Display mode	LCD
Cool mode	Fan
Reverse battery protection	Anti-reverse-connection protection device in the inside of controller
Open circuit protection	The controller will not be demaged if the battary in open circuit
Solar anti-charge protection	Battery don’t charge PV board in reverse
Solar anti-reverse protection	The controller will not be damaged when the PV is reverse-connection
Manual brake	Wind generator stop turning or slowing turning
Lightning protection	Lightning protection in inside of the controller
Protection grade	IP(Indoor)
Insulation resistance	Resistance between DC/AC input and the housing≧50ΜΩ
Ambient Temperature & Humidity Range	Ambient Temperature & Humidity Range
Altitude	Altitude
Dimensions (L x W x H)	445×425×170mm		Controller:440×300×170mm; Dumpload box：770×390×180mm
Net Weight	11kg		Controller ：7.5 kg; Dump load box：17 kg
